Add a new input form to checkout

Edit this page on GitHub

What鈥檚 in this topic

This topic describes how to add a custom input form (implemented as a UI component) to the Checkout page.

Most of the elements, including the default forms on the Checkout page are implemented as UI components. And we recommend your custom form to be a UI component, extending the default Magento_Ui/js/form/form component.

Overview

Magento provides the ability to add a custom form to any of the checkout steps: Shipping Information, Review and Payment Information, or custom. In order to add a custom form that is a UI component, take the following steps:

  1. Create the JS implementation of the form UI component.
  2. Create the knockout.js HTML template for rendering the form.
  3. Declare the form in the checkout page layout.

Prerequisites

Set Magento to developer mode while you perform all customizations and debugging.

For the sake of compatibility, upgradability, and easy maintenance, do not edit the default Magento code. Instead, add your customizations in a separate module. For your checkout customization to be applied correctly, your custom module should depend on the Magento_Checkout module.

Create the JS implementation of the form UI component

In your <your_module_dir>/view/frontend/web/js/ directory, create a .js file implementing the form.

Example of extending the default form component:

/*global define*/
define([
    'Magento_Ui/js/form/form'
], function(Component) {
    'use strict';
    return Component.extend({
        initialize: function () {
            this._super();
            // component initialization logic
            return this;
        },

        /**
         * Form submit handler
         *
         * This method can have any name.
         */
        onSubmit: function() {
            // trigger form validation
            this.source.set('params.invalid', false);
            this.source.trigger('customCheckoutForm.data.validate');

            // verify that form data is valid
            if (!this.source.get('params.invalid')) {
                // data is retrieved from data provider by value of the customScope property
                var formData = this.source.get('customCheckoutForm');
                // do something with form data
                console.dir(formData);
            }
        }
    });
});

Create the HTML template

Add the knockout.js HTML template for the form component under the <your_module_dir>/view/frontend/web/template directory.

Example:

<div>
    <form id="custom-checkout-form" class="form" data-bind="attr: {'data-hasrequired': $t('* Required Fields')}">
        <fieldset class="fieldset">
            <legend data-bind="i18n: 'Custom Checkout Form'"></legend>
            <!-- ko foreach: getRegion('custom-checkout-form-fields') -->
            <!-- ko template: getTemplate() --><!-- /ko -->
            <!--/ko-->
        </fieldset>
        <button type="reset">
            <span data-bind="i18n: 'Reset'"></span>
        </button>
        <button type="button" data-bind="click: onSubmit" class="action">
            <span data-bind="i18n: 'Submit'"></span>
        </button>
    </form>
</div>

Modifying the custom template after it was applied

If you modify your custom .html template after it was applied on the store pages, the changes will not apply until you do the following:

  1. Delete all files in the pub/static/frontend and var/view_preprocessing directories.
  2. Reload the pages.

Declare the form in the checkout page layout

Certain default checkout templates declare regions where additional content can be inserted. You can add your custom form in any of these regions. These regions are provided with corresponding comments in the default Checkout page layout file <Checkout_module_dir>/view/frontend/layout/checkout_index_index.xml.

Also you locate the regions in the .html templates of the blocks used in this layout file. For example, the shipping JS component (see <Magento_Checkout_module_dir>/view/frontend/web/template/shipping.html) provides the before-form region and corresponding UI container.

Any content added here is rendered before the Shipping Address form on the Shipping Information step. To add content to this region, create a checkout_index_index.xml layout update in the <your_module_dir>/view/frontend/layout/. It should be similar to the following:

<?xml version="1.0"?>
<page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd">
    <body>
        <referenceBlock name="checkout.root">
            <arguments>
                <argument name="jsLayout" xsi:type="array">
                    <item name="components" xsi:type="array">
                        <item name="checkout" xsi:type="array">
                            <item name="children" xsi:type="array">
                                <item name="steps" xsi:type="array">
                                    <item name="children" xsi:type="array">
                                        <item name="shipping-step" xsi:type="array">
                                            <item name="children" xsi:type="array">
                                                <item name="shippingAddress" xsi:type="array">
                                                    <item name="children" xsi:type="array">
                                                        <item name="before-form" xsi:type="array">
                                                            <item name="children" xsi:type="array">
                                                                <!-- Your form declaration here -->
                                                            </item>
                                                        </item>
                                                    </item>
                                                </item>
                                            </item>
                                        </item>
                                    </item>
                                </item>
                            </item>
                        </item>
                    </item>
                </argument>
            </arguments>
        </referenceBlock>
    </body>
</page>

Static forms

If the form fields are not generated dynamically, they can be defined in a layout.

The following code sample shows configuration of the form that contains four fields: text input, select, checkbox, and date. This form uses checkout data provider (checkoutProvider) that is introduced in the Magento_Checkout module:

Do we need to add a link or any other details

<item name="custom-checkout-form-container" xsi:type="array">
    <item name="component" xsi:type="string">%your_module_dir%/js/view/custom-checkout-form</item>
    <item name="provider" xsi:type="string">checkoutProvider</item>
    <item name="config" xsi:type="array">
        <item name="template" xsi:type="string">%your_module_dir%/custom-checkout-form</item>
    </item>
    <item name="children" xsi:type="array">
        <item name="custom-checkout-form-fieldset" xsi:type="array">
            <!-- uiComponent is used as a wrapper for form fields (its template will render all children as a list) -->
            <item name="component" xsi:type="string">uiComponent</item>
            <!-- the following display area is used in template (see below) -->
            <item name="displayArea" xsi:type="string">custom-checkout-form-fields</item>
            <item name="children" xsi:type="array">
                <item name="text_field" xsi:type="array">
                    <item name="component" xsi:type="string">Magento_Ui/js/form/element/abstract</item>
                    <item name="config" xsi:type="array">
                        <!-- customScope is used to group elements within a single form (e.g. they can be validated separately) -->
                        <item name="customScope" xsi:type="string">customCheckoutForm</item>
                        <item name="template" xsi:type="string">ui/form/field</item>
                        <item name="elementTmpl" xsi:type="string">ui/form/element/input</item>
                    </item>
                    <item name="provider" xsi:type="string">checkoutProvider</item>
                    <item name="dataScope" xsi:type="string">customCheckoutForm.text_field</item>
                    <item name="label" xsi:type="string">Text Field</item>
                    <item name="sortOrder" xsi:type="string">1</item>
                    <item name="validation" xsi:type="array">
                        <item name="required-entry" xsi:type="string">true</item>
                    </item>
                </item>
                <item name="checkbox_field" xsi:type="array">
                    <item name="component" xsi:type="string">Magento_Ui/js/form/element/boolean</item>
                    <item name="config" xsi:type="array">
                        <!--customScope is used to group elements within a single form (e.g. they can be validated separately)-->
                        <item name="customScope" xsi:type="string">customCheckoutForm</item>
                        <item name="template" xsi:type="string">ui/form/field</item>
                        <item name="elementTmpl" xsi:type="string">ui/form/element/checkbox</item>
                    </item>
                    <item name="provider" xsi:type="string">checkoutProvider</item>
                    <item name="dataScope" xsi:type="string">customCheckoutForm.checkbox_field</item>
                    <item name="label" xsi:type="string">Checkbox Field</item>
                    <item name="sortOrder" xsi:type="string">3</item>
                </item>
                <item name="select_field" xsi:type="array">
                    <item name="component" xsi:type="string">Magento_Ui/js/form/element/select</item>
                    <item name="config" xsi:type="array">
                        <!--customScope is used to group elements within a single form (e.g. they can be validated separately)-->
                        <item name="customScope" xsi:type="string">customCheckoutForm</item>
                        <item name="template" xsi:type="string">ui/form/field</item>
                        <item name="elementTmpl" xsi:type="string">ui/form/element/select</item>
                    </item>
                    <item name="options" xsi:type="array">
                        <item name="0" xsi:type="array">
                            <item name="label" xsi:type="string">Please select value</item>
                            <item name="value" xsi:type="string"></item>
                        </item>
                        <item name="1" xsi:type="array">
                            <item name="label" xsi:type="string">Value 1</item>
                            <item name="value" xsi:type="string">value_1</item>
                        </item>
                        <item name="2" xsi:type="array">
                            <item name="label" xsi:type="string">Value 2</item>
                            <item name="value" xsi:type="string">value_2</item>
                        </item>
                    </item>
                    <!-- value element allows to specify default value of the form field -->
                    <item name="value" xsi:type="string">value_2</item>
                    <item name="provider" xsi:type="string">checkoutProvider</item>
                    <item name="dataScope" xsi:type="string">customCheckoutForm.select_field</item>
                    <item name="label" xsi:type="string">Select Field</item>
                    <item name="sortOrder" xsi:type="string">2</item>
                </item>
                <item name="date_field" xsi:type="array">
                    <item name="component" xsi:type="string">Magento_Ui/js/form/element/date</item>
                    <item name="config" xsi:type="array">
                        <!--customScope is used to group elements within a single form (e.g. they can be validated separately)-->
                        <item name="customScope" xsi:type="string">customCheckoutForm</item>
                        <item name="template" xsi:type="string">ui/form/field</item>
                        <item name="elementTmpl" xsi:type="string">ui/form/element/date</item>
                    </item>
                    <item name="provider" xsi:type="string">checkoutProvider</item>
                    <item name="dataScope" xsi:type="string">customCheckoutForm.date_field</item>
                    <item name="label" xsi:type="string">Date Field</item>
                    <item name="validation" xsi:type="array">
                        <item name="required-entry" xsi:type="string">true</item>
                    </item>
                </item>
            </item>
        </item>
    </item>
</item>

Dynamically defined forms

If form fields are generated dynamically, you must implement a plugin for the \Magento\Checkout\Block\Checkout\LayoutProcessor::process method. A plugin can add custom fields definitions to layout at run-time. The format of the field definition is the same as for fields defined in layout.

For example:

$textField = [
    'component' => 'Magento_Ui/js/form/element/abstract',
    'config' => [
        'customScope' => 'customCheckoutForm',
        'template' => 'ui/form/field',
        'elementTmpl' => 'ui/form/element/input',
    ],
    'provider' => 'checkoutProvider',
    'dataScope' => 'customCheckoutForm.text_field',
    'label' => 'Text Field',
    'sortOrder' => 1,
    'validation' => [
        'required-entry' => true,
    ],
];

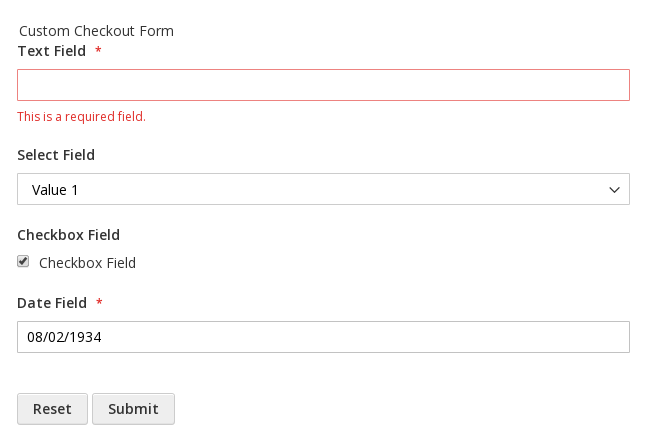

Illustration

If you use the code samples provided as examples in this topic, this would result in adding the following form to the Shipping Information step:

The input form with four fields
