Buttons

Contents

Overview

Buttons bring attention to actions on the screen. This article will cover the use of general buttons on Magento. For solutions not described in this article, please refer to other related patterns or contact the Magento UX Design team.

When to Use

Buttons should be used anywhere a call to action(CTA) is needed. Discretion should be used when deciding when to use a button vs. a hyperlink, icon, or another call to action.

When Not to Use

  • Do not use buttons to indicate actions that are better suited as hyperlinks such
    as 鈥淐ancel鈥. Some exceptions may apply.
  • Do not use more than one primary page level action on a single page for different actions. Some exceptions may apply.
  • Do not use buttons to indicate a link to more information or to a task not related to primary flow.

Variations

Variations of this pattern are as follows, and will be detailed in the section on Appearance and behavior:

  • Page level buttons are to be used for calls to action on pages.
  • Form level buttons are to be used on forms.
  • Table level buttons are to be used within tables or data grids


Buttons will be take on one of the below variations.

Page Level Form Level Table Level
Primary Primary Regular
Secondary Secondary Icon
Toggle Toggle Toggle
Tertiary Tertiary Tertiary
Table Button Table Button Table Button
Primary Dropdown Primary Dropdown Primary Dropdown
Secondary Dropdown Secondary Dropdown Secondary Dropdown

CSS style classes will need to be established for any buttons that require a custom defined style.

Styles and Behavior

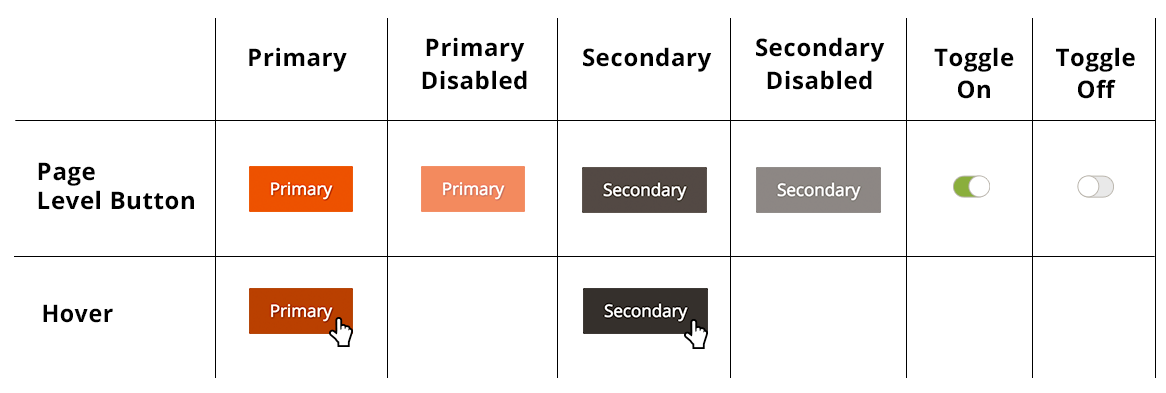

1. Page Level Button

Font details
Family: Open Sans Semibold;
Size: 17px; (or 1.125em based on 14px default font)
Color: #ffffff

Background color
Primary: #eb5202; (CSS-$magento-orange-color)
Secondary: #514943; (CSS-$magento-dark-brown)

Hover background color
Primary: # aa2d00;
Secondary: # 282421;

Disabled style
Opacity: 50%

Page Level Button Padding
Top/Bottom: 11px
Left/Right: 20px

Margin Spacing
Top/Bottom margin spacing should not be less than 10px
Left/Right margin spacing should not be less than 20px

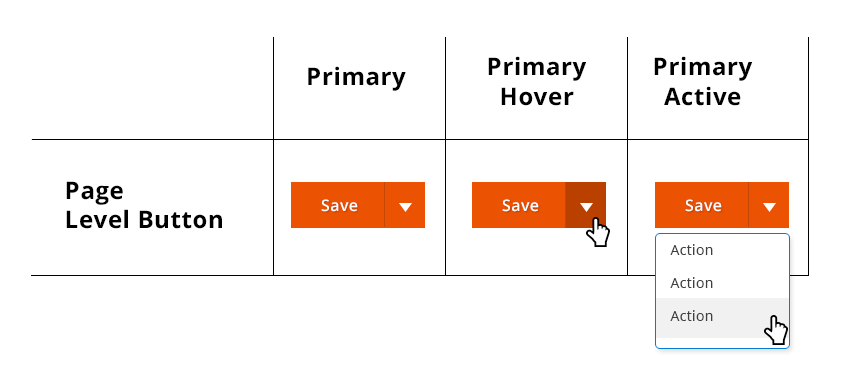

Font details
Family: Open Sans Semibold;
Size: 17px; (or 1.125em based on 14px default font)
Color: #ffffff

Background color
Primary: #eb5202; (CSS-$magento-orange-color)
Secondary: #514943; (CSS-$magento-dark-brown)


Hover background color
Primary: # aa2d00;
Secondary: #28242;
Dropdown stroke: #337ab7;
Dropdown Highlight: #eeeeee

Disabled style
Opacity: 50%

Page Level Button Padding
Top/Bottom: 11px
Left/Right: 20px

Margin Spacing
Top/Bottom margin spacing should not be less than 10px
Left/Right margin spacing should not be less than 20px


3. Tertiary Buttons


Font details
Family: Open Sans Semibold;
Size: 14px; (or .750em based on 14px default font)
Color: #ffffff

Background colors
Secondary: #514943; (CSS-$magento-dark-brown)

Hover background color
Secondary: #28242;

Disabled style
Opacity: 50%

Tertiary Level Button Padding
Top/Bottom: 12px
Left/Right: 30px

Margin Spacing
Top/Bottom margin spacing should not be less than 10px
Left/Right margin spacing should not be less than 20px

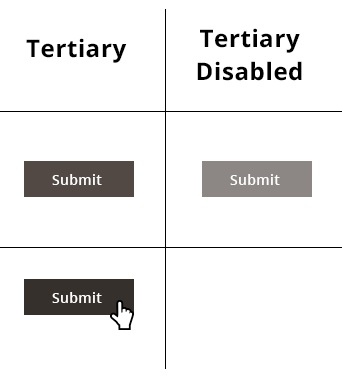

Tertiary Button Example:


4. Quaternary Buttons


Quaternary buttons are only after all the buttons hierarchy have been used.

Font details
Family: Open Sans Semibold;
Size: 13px; (or .750em based on 14px default font)
Color: #322923

Background colors
Light: #dcdcdc;

Border
Solid
Width: 1px;
Border color: #9d9d9d;

Hover background color
Dark:#cccccc;

Disabled style
Opacity: 50%

Tertiary Level Button Padding
Top/Bottom: 12px
Left/Right: 15px

Margin Spacing
Top/Bottom margin spacing should should not be less than 10px
Left/Right margin spacing should not be less than 10px

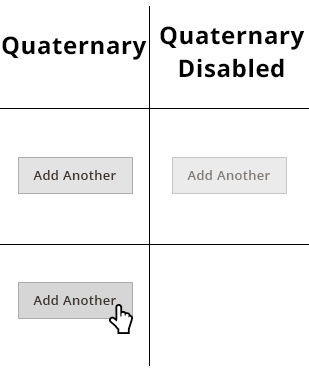

Quaternary Button Example:

5. Toggle Buttons

The toggle button acts like a checkbox. When you touch/click on it, the state toggles between 鈥測es鈥 and 鈥渘o鈥 and/or 鈥渙n鈥 and 鈥渙ff鈥.

When to Use/When Not to Use
Use toggle for:
* Binary selection (true/false) when only a single option can be set
* When multiple non-required selections can be set
* In relation to other form elements when needed

Do not use checkboxes if:
* Multiple options need visibility


Variations
No additional variations.

Font details
Family: Open Sans Semibold;
Size: 13px; (or .750em based on 14px default font)
Color: #322923

Background colors
Light: #dcdcdc;

Border
Solid
Width: 1px;
Border color: #9d9d9d;

Active background color
Dark:#cccccc;

Inactive background color
Dark:#cccccc;

Disabled style
Opacity: 50%

Tertiary Level Button Padding
Top/Bottom: 12px
Left/Right: 15px

Margin Spacing
Top/Bottom margin spacing should should not be less than 10px
Left/Right margin spacing should not be less than 10px

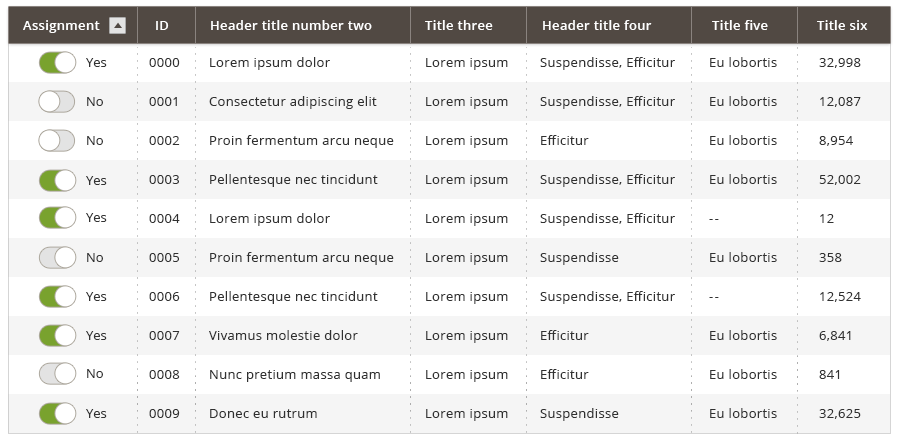

Examples of toggle buttons:

Accessibility

PC: http://support.microsoft.com/kb/126449
OS: http://support.apple.com/en-us/HT201236
(Keyboard shortcut same as checkbox)

Assets

Please reach out to the Magento UX Design team if you need anything else.

Download Button PSD source
