Entities of the Magento Testing Framework

Edit this page on GitHub

Block

Block overview

In functional tests we use Page Object Design Pattern. Under this pattern, a block is an area of the UI that a test interacts with, and a page is a container for blocks.

The Page Object Design Pattern is used to avoid unnecessary duplication of code and to make tests easier to support.

Block as a class represents a set of methods to manipulate with Magento UI blocks.

A block can have the following features:

  • A block can contain other blocks.
  • A block can be used in several pages and blocks.

This topic shows how to create a new block and explore its structure. It discusses how to use mapping for forms in blocks and forms in tabs.

Create block

A basic flow is the following:

  1. Get name and path of the block you want to test
  2. Create block class with logic you need for the tests
  3. Add block to the page
  4. Run the page generator

How to determine a block name and a path

The block name and path in the Magento functional tests (<magento2>/dev/tests/functional/tests/app) should reflect a corresponding block in the Magento code base for your convenience. For example, you develop a functional test for the bundle product creation, that uses the Bundle Items section. In the Magento code base, the block, which is responsible for the bundle option, is the .../Magento/Bundle/Block/Adminhtml/Catalog/Product/Edit/Tab/Bundle/Option.php, so in the Magento functional tests you can create a new file .../Magento/Bundle/Block/Test/Adminhtml/Catalog/Product/Edit/Tab/Bundle/Option.php.

Magento can show you a full class name of the block and path to the PHTML template on the Magento page (changes web page design) or implicitly in the HTML code of the page.

Get the name and the path of blocks in UI

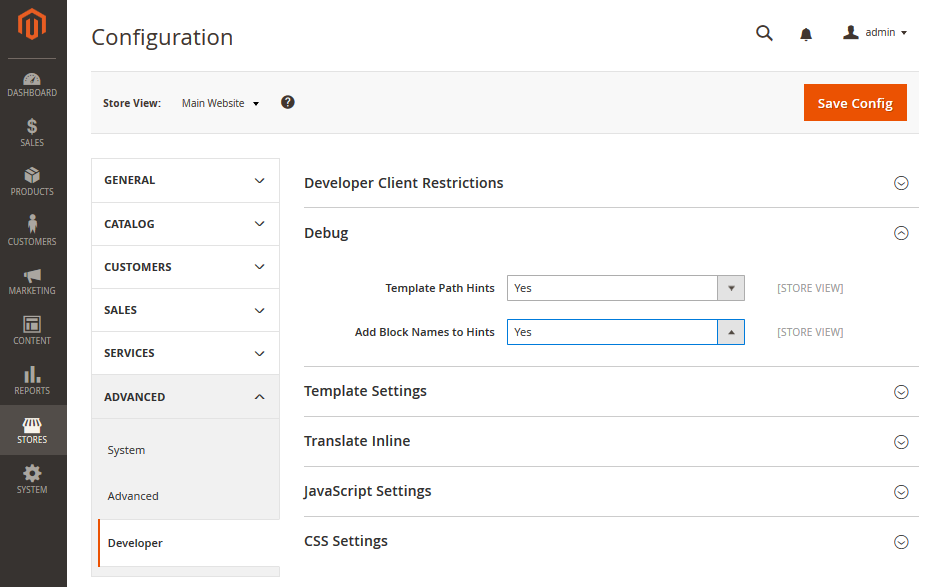

To enable this feature follow:

  1. Log in to Magento Admin as administrator
  2. Follow STORES > Configuration
  3. Change Store View to Main Website (the template path and block name will only appear for current website)
  4. Follow ADVANCED > Developer
  5. Expand the Debug tab
  6. Set Template Path Hints to Yes
  7. Set Add Block Name to Hints to Yes
  8. Save Config

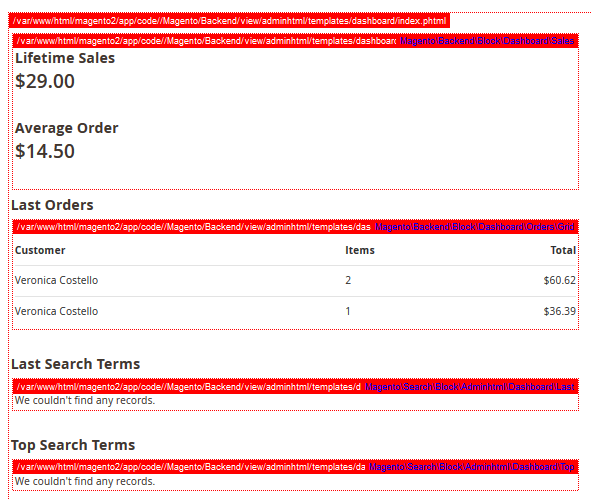

Now each UI block has hint about its name and path. Also, you can see the path to a PHTML template, where you can find a path to the Magento block, if you cannot find it in the hint.

聽聽

If the name and path cover partially each other, hover the mouse pointer over the name or the path (whatever you need) with mouse pointer to see the full phrase.

Get the name and the path of blocks in the code

If you want to change the representation of block details, you can change a Template.php:

  • Open <magento2>/lib/internal/Magento/Framework/View/Element/Template.php

  • Find the method

<?php
protected function _toHtml()
{
    if (!$this->getTemplate()) {
        return '';
    }
    return $this->fetchView($this->getTemplateFile());
}
?>
  • Change the code to the following
<?php
protected function _toHtml()
{
    if (!$this->getTemplate()) {
        return '';
    }
    $name = $this->getNameInLayout();
    $template = $this->getTemplateFile();
    $class = get_class($this);
    return "<!-- BEGIN $name using $template \n" . $class . "-->"
        . $this->fetchView($template)
        . "<!-- END $name using $template -->";
}
?>
  • Save the file

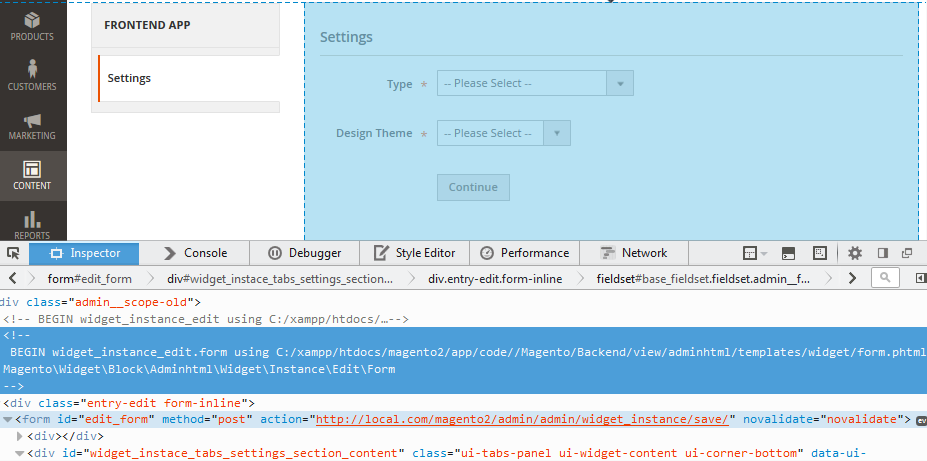

Now you can inspect any element in a browser, and find which block contains it.

Block class

The block class contains all logic you want to apply to the Magento block under test.

Block identifier

Each block has an identifier that includes selector and search strategy. This identifier is determined by Magento\Mtf\Client\Element\Locator class and is stored in the _rootElement property of the Magento\Mtf\Block\Block class.

You can use the _rootElement to find an element in the current block.

Example from the WidgetInstance.php block:

<?php
protected function addLayoutUpdates()
{
   $this->_rootElement->find($this->addLayoutUpdates)->click();
}
?>

This code uses _rootElement to search the button element by the $this->addLayoutUpdates selector. The advantage of the _rootElement is that it enables search in the context of the block to which the element belongs.

Use blocks inside blocks

You can get other blocks in the block using the BlockFactory class and a selector.

See the following example:

<?php
protected function getTemplateBlock()
{
    return $this->blockFactory->create(
        'Magento\Backend\Test\Block\Template',
        ['element' => $this->_rootElement->find($this->templateBlock, Locator::SELECTOR_XPATH)]
    );
}
?>

In this code we are creating the Magento\Backend\Test\Block\Template block with the selector $this->templateBlock.

Basic blocks

Magento contains basic blocks for the functional testing with a logic that you can reuse. The most popular are the following:

For example, WidgetGrid.php. This block simply reuses methods of Magento\Backend\Test\Block\Widget\Grid class.

Add a block to the page

Blocks are tested as part of the page object. To add the block to the page you must add a corresponding node to the XML file of the page object.

For example, the WidgetGrid.php is a part of the page that is defined in WidgetInstanceIndex.xml.

block is the node that adds the block to the page:

<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../../../../../vendor/magento/mtf/etc/pages.xsd">
    <page name="WidgetInstanceIndex" area="Adminhtml" mca="admin/widget_instance/index" module="Magento_Widget">
        ...
        <block name="widgetGrid" class="Magento\Widget\Test\Block\Adminhtml\Widget\WidgetGrid" locator="#widgetInstanceGrid" strategy="css selector" />
        ...
    </page>
</config>

See the block node attributes details in the following table:

block attribute Description Is required Values Example
name Name of the block Required Unique in the page. The method to get the block class instance is generated using this value. widgetGrid
class Full name of the block class Required Class name Magento\Widget\Test\Block\Adminhtml\Widget\WidgetGrid
locator CSS selector or XPath locator of the block Required CSS Selectors, XPath CSS: #widgetInstanceGrid, XPath: //*[@id="widgetInstanceGrid"]
strategy Selector strategy Required css selector or xpath css selector

Run the page generator

To apply all changes you've made to the page (XML file), run the page generator.

php <magento2>/dev/tests/functional/utils/page.php

The page will be updated in the <magento2>/dev/tests/functional/generated directory.

Form mapping

Often, you need to test a Magento block that contains a form. And of course, tests require entering data in the forms. The Magento Testing Framework (MTF)has a Magento\Mtf\Block\Form class that enables you to fill the forms automatically. One of the advantages of using this class is that you can list elements that must be automatically filled. These elements can be grouped in separate XML files. In the MTF we call this process 鈥渁 mapping鈥. You can use mapping to transfer data to the block from the fixture.

A mapping file is an XML file which has the same name and path as the block does, and contains fields that represent form fields. Field name in the mapping file shall match the one in the fixture.

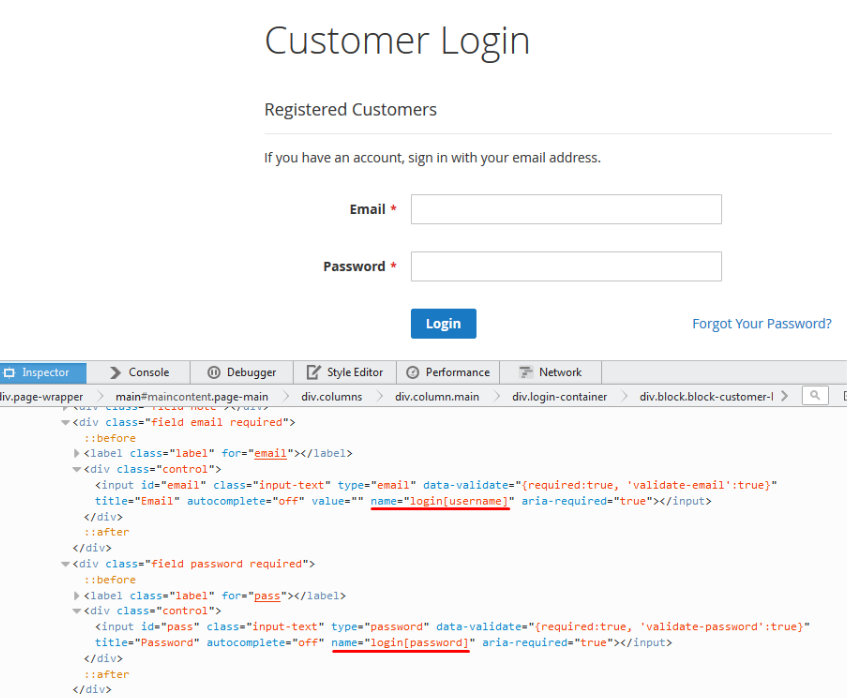

Let鈥檚 see the Customer Login block. The block has two input fields: email and password.

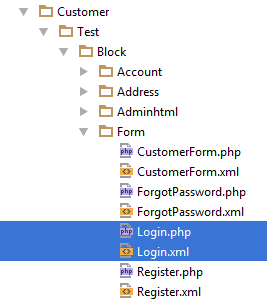

The mapping file for the block is stored in <magento2>/dev/tests/functional/tests/app/Magento/Customer/Test/Block/Form/Login.xml, along with the block.

The mapping file defines the fields from the form.

<?xml version="1.0" ?>
<!--
/**
 * Copyright 漏 2015 Magento. All rights reserved.
 * See COPYING.txt for license details.
 */
-->
<mapping strict="1">
    <wrapper>login</wrapper>
    <fields>
        <email>
            <selector>[name='login[username]']</selector>
        </email>
        <password />
    </fields>
</mapping>

See a description of the nodes in the following table.

Node Description Value from example
mapping Root node with a strict attribute. If strict equals 0, then all the fixture field data must be entered in the block form. If strict equals 1, then only the mapping file fields data must be entered in the block form. "1". Only the mapping file fields data must be entered in the block form.
wrapper Automatically adds group_name to the selector of the field, when selector has not been specified. login
fields The node containing mapping fields. <email>, <password />.
selector Value for the selector that is used to find the field. Default: [name='group_name[field_node_name]']. Default value is assigned automatically if the node is absent in the field. For the <email>, the [name='login[username]'].
For the <password />, the [name='login[password]'] that is the default value where wrapper="login".
strategy The strategy of the selection. Available values: css selector, xpath. Default: css selector. css selector as a default value.
input Type of the input element. Available values: simple is for simple input element. Default: simple. Do not use class node, if you use input in the field. simple as a default value.
class Class of the element. Applicable if non of the input options fits. Do not use input, if you use class in the field. This node has not been used in the example.

All nodes are optional. Default value is assigned automatically if a node (selector, strategy, input) is absent in the field.

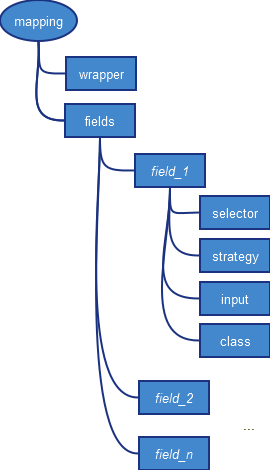

The general structure of the form mapping file:

Form tab mapping

You can use mapping for the forms on tabs (a form tab) that enables you to automate switching between tabs and entering the data. To get the block class with form tab mapping, extend your class from Magento\Backend\Test\Block\Widget\FormTabs . If you want to use custom tab logic you can extend your class from Magento\Backend\Test\Block\Widget\Tab class.

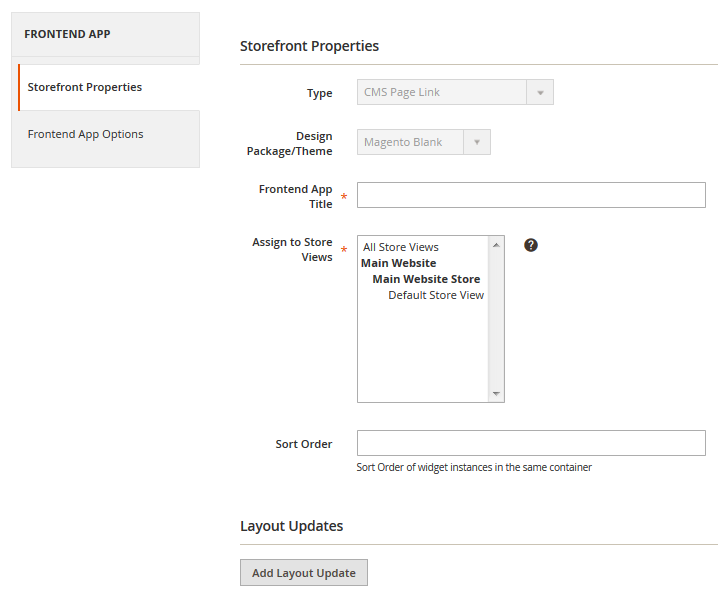

For example, let鈥檚 see tabs for the Magento Widget: Settings, Storefront properties, Frontend App Options, Layout Updates .

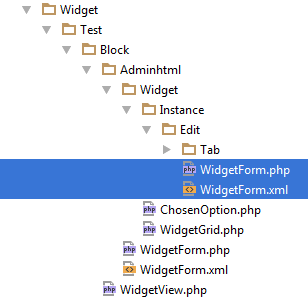

Four tabs are mapped in the <magento2>/dev/tests/functional/tests/app/Magento/Widget/Test/Block/Adminhtml/Widget/Instance/Edit/WidgetForm.xml file, which is stored along with the block class.

The file contains the following mapping:

<?xml version="1.0" ?>
<!--
/**
 * Copyright 漏 2015 Magento. All rights reserved.
 * See COPYING.txt for license details.
 */
-->
<tabs>
    <settings>
        <class>\Magento\Widget\Test\Block\Adminhtml\Widget\Instance\Edit\Tab\Settings</class>
        <selector>#widget_instace_tabs_settings_section</selector>
        <strategy>css selector</strategy>
        <fields>
            <code>
                <input>select</input>
            </code>
            <theme_id>
                <input>select</input>
            </theme_id>
        </fields>
    </settings>
    <frontend_properties>
        <class>\Magento\Backend\Test\Block\Widget\Tab</class>
        <selector>#widget_instace_tabs_main_section</selector>
        <strategy>css selector</strategy>
        <fields>
            <title />
            <store_ids>
                <input>multiselectgrouplist</input>
                <selector>[id="store_ids"]</selector>
            </store_ids>
        </fields>
    </frontend_properties>
    <widget_options>
        <class>\Magento\Widget\Test\Block\Adminhtml\Widget\Instance\Edit\Tab\Parameters</class>
        <selector>#widget_instace_tabs_properties_section</selector>
        <strategy>css selector</strategy>
    </widget_options>
    <widget_instance>
        <class>\Magento\Widget\Test\Block\Adminhtml\Widget\Instance\Edit\Tab\WidgetInstance</class>
        <selector>#widget_instace_tabs_main_section</selector>
        <strategy>css selector</strategy>
    </widget_instance>
</tabs>

See the following table to understand the node鈥檚 purpose.

tabs nodes Description
wrapper Automatically adds group_name to the selector of the field, when selector has not been specified.
class Reference to the class that handles tab鈥檚 behavior.
selector Identifier for the selector of the tab in the HTML code, used to open the tab.
strategy Strategy of the selector. Can be css selector or xpath.
fields List of fields with parameters, that are the same as in the form mapping. Also field in tab can include more then one field, in this case add field attribute composite="1".

Example of composite field from ProductForm.xml:

In the mapping file:

<quantity_and_stock_status composite="1">
    <qty>
        <selector>[name="product[quantity_and_stock_status][qty]"]</selector>
    </qty>
    <is_in_stock>
        <selector>[name="product[quantity_and_stock_status][is_in_stock]"]</selector>
        <input>select</input>
    </is_in_stock>
</quantity_and_stock_status>

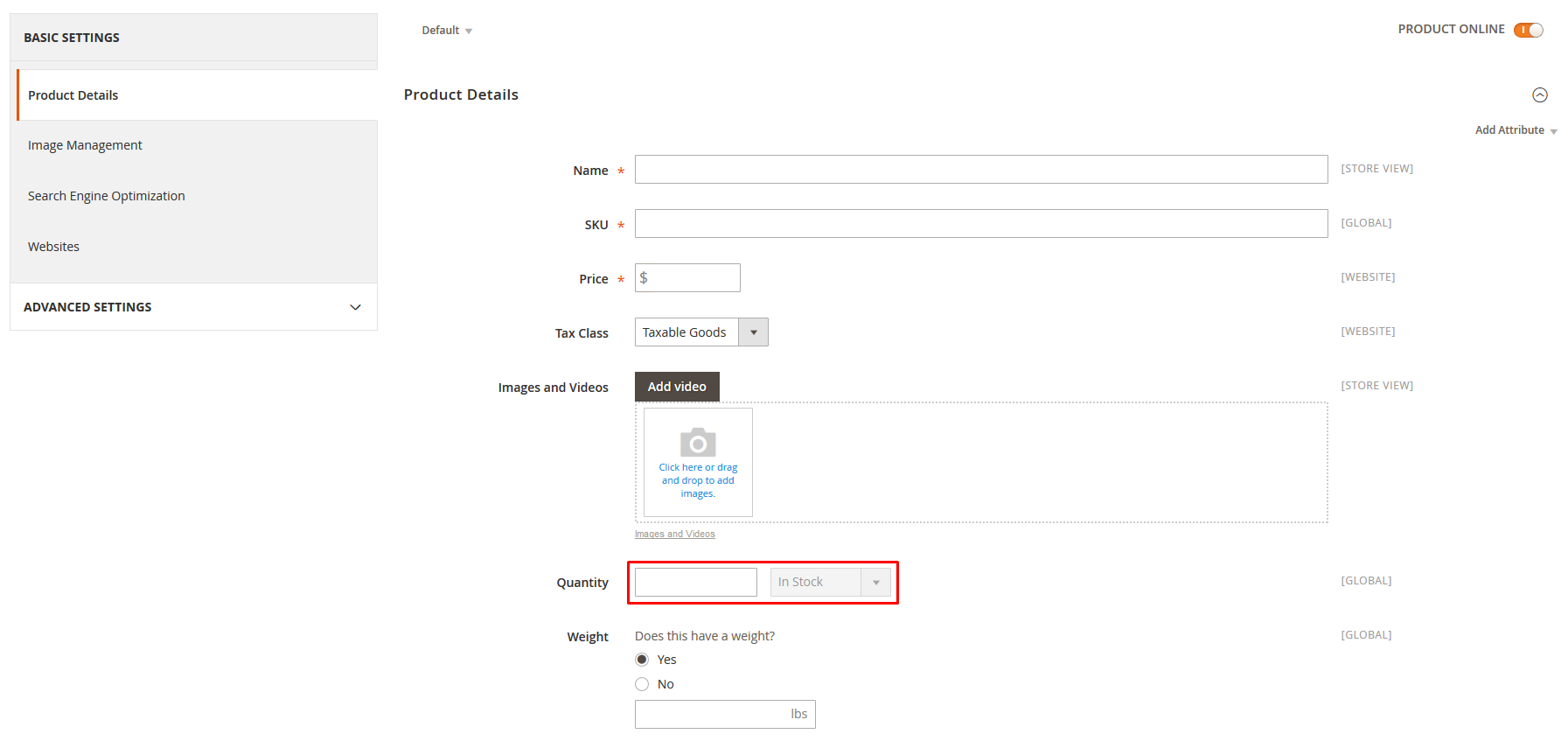

On the UI:

Example of `composite` field

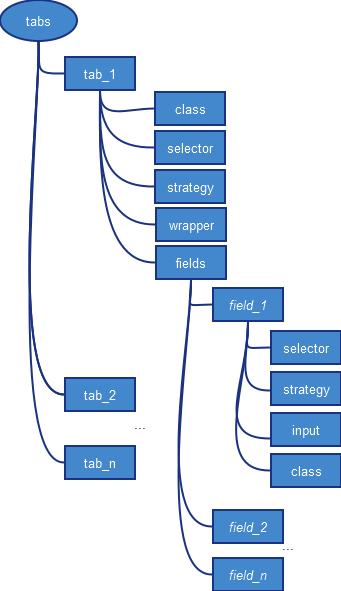

The general structure of the form tab mapping file:

Merging form tab mapping files

When you test a module that extends the functionality of the other module by adding a tab to the testing module entity, you can merge their form tab mapping files.

The form tab mapping files that have the same name and path inside different modules are merged automatically.

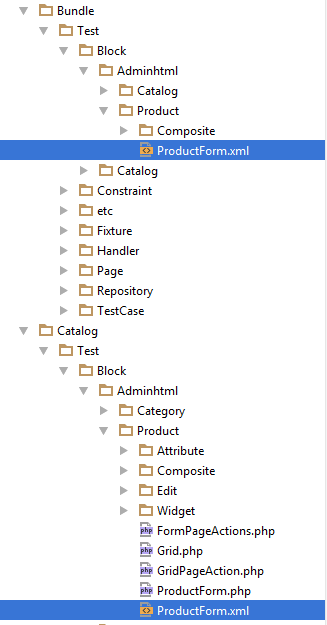

Form tab mapping files in the following example will be merged automatically:

Renders

Renders help to unify a polymorphic behavior of the block. If you want to test the functionality of the object, which behavior differs depending on the type of the object, you can create a separate class for each type and call the corresponding class using render.

How to use renders

Use case: We want to test the 鈥淎dd to cart鈥 functionality. To add different types of products, we need to configure each type in a different way. For the configuration, we need options of the type we want to configure. We can use render to get product options. Render specifies which class to use for the specific type of product.

Let鈥檚 see the Catalog/Test/Page/Product/CatalogProductView.xml page. For the better readability we reduced a list of blocks to one block.

<?xml version="1.0" encoding="utf-8"?>
<!--
/**
 * Copyright 漏 2015 Magento. All rights reserved.
 * See COPYING.txt for license details.
 */
 -->
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../../../../../vendor/magento/mtf/etc/pages.xsd">
    <page name="CatalogProductView" area="Product" mca="catalog/product/view" module="Magento_Catalog">
        <block name="viewBlock" class="Magento\Catalog\Test\Block\Product\View" locator="#maincontent" strategy="css selector" module="Magento_Catalog"/>
    </page>
</config>

This page relates to the Magento_Catalog module and contains ViewBlock. This block has reference to the Magento\Catalog\Test\Block\Product\View.php class, that is responsible to enter data in Product form fields. But different types of products, such as bundle, each have their own ViewBlock in a corresponding module. And that is where you can use render!

Create a render

Let鈥檚 create render for the bundle product.

Step 1. Create Bundle/Test/Page/Product/CatalogProductView.xml page to merge with the basic page Catalog/Test/Page/Product/CatalogProductView.xml. Learn more about page merging.

Step 2. In the Bundle/Test/Page/Product/CatalogProductView.xml, copy page node from the Catalog/Test/Page/Product/CatalogProductView.xml without module attribute

<?xml version="1.0" encoding="utf-8"?>
<!--
/**
 * Copyright 漏 2015 Magento. All rights reserved.
 * See COPYING.txt for license details.
 */
 -->
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../../../../../vendor/magento/mtf/etc/pages.xsd">
    <page name="CatalogProductView" area="Product" mca="catalog/product/view">

    </page>
</config>

Step 3. Insert block with the same name of block and add a render that indicates the type of product and the class that processes this block

<?xml version="1.0" encoding="utf-8"?>
<!--
/**
 * Copyright 漏 2015 Magento. All rights reserved.
 * See COPYING.txt for license details.
 */
 -->
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="../../../../../../../vendor/magento/mtf/etc/pages.xsd">
    <page name="CatalogProductView" area="Product" mca="catalog/product/view">
        <block name="viewBlock">
            <render name="bundle" class="Magento\Bundle\Test\Block\Catalog\Product\View" />
        </block>
    </page>
</config>

Details:

  • The PHP class for the page will be generated in the Magento_Catalog module, because we did not mention module attribute in the page node
  • In the block, we indicate name attribute only

Step 4. Run the page generator

To apply all changes you've made to the page (XML file), run the page generator.

php <magento2>/dev/tests/functional/utils/page.php

The page will be updated in the <magento2>/dev/tests/functional/generated directory.

Use a render

In the following example we have used the render to call the getOptions() method from Magento\Bundle\Test\Block\Catalog\Product\View.php.

Let鈥檚 take a look at the basic class Magento\Catalog\Test\Block\Product\View.php.

<?php
public function getOptions(FixtureInterface $product)
{
    /** @var CatalogProductSimple $product */
    $dataConfig = $product->getDataConfig();
    $typeId = isset($dataConfig['type_id']) ? $dataConfig['type_id'] : null;

    return $this->hasRender($typeId)
        ? $this->callRender($typeId, 'getOptions', ['product' => $product])
        : $this->getCustomOptionsBlock()->getOptions($product);
}
?>

It contains the getOptions() method that:

  • Gets from the Bundle/Test/Fixture/BundleProduct.php fixture the type_id field value - $dataConfig['type_id']. In our case, type_id='bundle'.

  • Calls the hasRender() method to check if there is a render with the name bundle

  • Calls the render if there is a render with the name bundle

$this->callRender($typeId, 'getOptions', ['product' => $product])
  • Calls a default method if the render is absent
$this->getCustomOptionsBlock()->getOptions($product);
