Handler overview
You can use a handler to set up preconditions and prepare an initial testing environment for particular tests. For example, your scenario requires a particular widget that must be implicitly created before the test is started. You need a fixture, a data set, and a handler. The handler transfers data to the application being tested. The data is a list of fields from a fixture and values from data sets.
This topic focuses on handlers, and we鈥檒l discuss types of handlers as well as how to create and use one.
Types of handlers
The MTF enables you to use any type of handler.
Magento uses the following handlers:
Type of handler | Mechanism | Example | Tip |
---|---|---|---|
UI | Drives the web browser. | Set of scripts for Selenium that simulate user actions to create a widget through a web browser. | The UI handler is much slower then the other handlers. When the test execution time is critical, you should avoid use of the UI handler. The UI handler code is very similar to the code of the test that doesn鈥檛 contain constraints. If you have a test for widget creation, you can re-use the code, because the code of UI handler that creates widget is very similar. |
cURL | Sends POST or PUT requests to the server hosting the application that is being tested. | HTTP POST request to the application server, that transfers Widget fixture fields and corresponding values from the data set. | Browser is not involved, that鈥檚 why the cURL handler works much faster than the UI handler. |
WebAPI | Sends a POST request using the REST API. See REST API reference documentation. | Similar to cURL but uses the REST API entry point. | Has the advantage of testing the API, faster than cURL. |
Furthermore, you can create your own handlers, such as Direct, which is very fast because the Direct handler sends a direct call to the Magento application using Magento models. The Direct handler requires deep understanding of the Magento application, and also requires access to the Magento code and the database. Difficulties can be caused when the Magento code and Magento tests are run on different hosts.
Configuration
One fixture can have various handlers. When we create an entity in the test we do not indicate which handler to use. This work is delegated to a fallback, which is a queue of handlers in the priority order specified in config.xml
.
config.xml
The default configuration for handlers is set in <magento2>/dev/tests/functional/etc/config.xml.dist
. Create a duplicate of the file, and keep both, but make changes to the new one, which is called config.xml
:
cp config.xml.dist config.xml
The following nodes influence handlers:
Node | Semantics | Example |
---|---|---|
<backendLoginUrl> | Reference to the login form of the Admin. | <backendLoginUrl>admin/auth/login</backendLoginUrl> |
<backendLogin> | A username to access the Admin as a Magento administrator. | <backendLogin>admin</backendLogin> |
<backendPassword> | A password to access the Admin as a Magento administrator. | <backendPassword>pas$worD</backendPassword> |
<handler> | Specifies priorities for different types of handler. The less the value, the higher the priority. The highest priority has value 0 . token contains access token (used by WebAPI handlers only). |
<handler> <webapi priority="0"> <token>integration_token</token> </webapi> <curl priority="1" /> <ui priority="2" /> </handler> |
Handler components
Handler interface
Each handler must implement a handler interface.
You should mention in a fixture the handler_interface
attribute with a reference to the PHP class: Magento\[module_name]\Test\Handler\[object_name]\[object_name]Interface
(example for the Widget: Magento\Widget\Test\Handler\Widget\WidgetInterface
).
Example of WidgetInterface.php
(should be placed in <magento2>/dev/tests/functional/tests/app/Magento/Widget/Test/Handler/Widget
):
Handler class
To use the handler class, create an interface, declare a fallback in the config.xml
, and declare interface/class relationships in the di.xml
. When this class is created, you can call the persist()
method to create Magento entity (for example, widget). The method returns data that are matched with fixture fields. All fixture fields that are matched are assigned values from the handler.
The persist()
method is declared in the InjectableFixture
class by path <magento2>/dev/tests/functional/vendor/magento/mtf/Magento/Mtf/Fixture/InjectableFixture.php
.
Create the handler in the same directory where the interface is stored: <magento2>/dev/tests/functional/tests/app/Magento/[module_name]/Test/Handler/[object_name]/[type_of_handler].php
di.xml
The di.xml
file declares relationship between the interface and the handler class. The file must be placed in <magento2>/dev/tests/functional/tests/app/Magento/[module_name]/Test/etc/[handler_type]
.
See an example for the Widget cURL handler (<magento2>/dev/tests/functional/tests/app/Magento/Widget/Test/etc/curl/di.xml
):
<?xml version="1.0" ?>
<!--
/**
* Copyright 漏 2015 Magento. All rights reserved.
* See COPYING.txt for license details.
*/
-->
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
<preference for="Magento\Widget\Test\Handler\Widget\WidgetInterface" type="\Magento\Widget\Test\Handler\Widget\Curl" />
</config>
In this example, the di.xml
file causes the Curl
class to replace the WidgetInterface
.

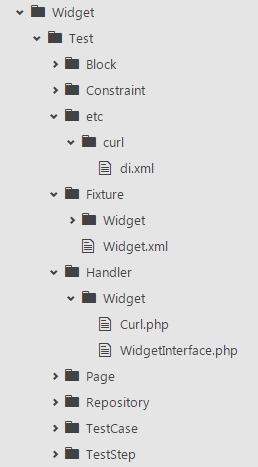

See the directory structure mentioned for the case with the Widget cURL handler:
How to create a cURL handler
Let鈥檚 create a cURL handler that creates a new widget.
- Create a directory with the name
Widget
in theHandler
directory of the Magento_Widget module -<magento2>/dev/tests/functional/tests/app/Magento/Widget/Test/Handler/Widget
. - In the same directory, create the interface for the cURL handler, and call the file
WidgetInterface.php
. Our new interface extendsHandlerInterface
class.
- Create
Curl.php
in the same directory. This file contains a handler class, which defines preparation of a data to create a new widget.
The following code includes detailed comments for better understanding.
- Create
di.xml
in theetc/curl
directory of the Magento_Widget module.
<?xml version="1.0" ?>
<!--
/**
* Copyright 漏 2015 Magento. All rights reserved.
* See COPYING.txt for license details.
*/
-->
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
<preference for="Magento\Widget\Test\Handler\Widget\WidgetInterface" type="\Magento\Widget\Test\Handler\Widget\Curl" />
</config>
cURL authentication classes
In the previously mentioned example of the Curl.php code, authentication in the Admin is realized using the BackendDecorator
class.
The FrontendDecorator class manages authentication in the storefront.
BackendDecorator class
BackendDecorator
manages authentication in Admin and saves the Admin鈥檚 session.
Full class name is Mtf\Util\Protocol\CurlTransport\BackendDecorator
.
Add to the Curl.php
the following code:
$curl = new BackendDecorator(new CurlTransport(), new Config());
Config()
takes Admin鈥檚 configuration from config.xml, where the username and the password are stored.
FrontendDecorator class
FrontendDecorator
helps to authorize the customer and saves his session.
Full class name is Mtf\Util\Protocol\CurlTransport\FrontendDecorator
.
Use the following code in the Curl.php
file:
$curl = new FrontendDecorator(new CurlTransport(), $this->customer);
How to create a UI handler
Let鈥檚 create a UI handler that creates a new widget.
- Create a directory with the name
Widget
in theHandler
directory of the Magento_Widget module -<magento2>/dev/tests/functional/tests/app/Magento/Widget/Test/Handler/Widget
. - In the same directory, create interface for the UI handler, and call the file
WidgetInterface.php
. Our new interface extendsHandlerInterface
class.
- Create
Ui.php
in the same directory. This file contains a handler class, which defines preparation of a data to create a new widget.
The code has detailed comments for better understanding.
- Create
di.xml
in theetc/ui
directory of the Magento_Widget module.
<?xml version="1.0" ?>
<!--
/**
* Copyright 漏 2015 Magento. All rights reserved.
* See COPYING.txt for license details.
*/
-->
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
<preference for="Magento\Widget\Test\Handler\Widget\WidgetInterface"
type="\Magento\Widget\Test\Handler\Widget\Ui" />
</config>
How to create a WebAPI handler
Let鈥檚 create a WebAPI handler that creates a new tax rule.
- Create a directory with the name
TaxRule
in theHandler
directory of the Magento_Tax module -<magento2>/dev/tests/functional/tests/app/Magento/Tax/Test/Handler/TaxRule
. - In the same directory, create interface for the WebAPI handler, and call the file
TaxRuleInterface.php
. Our new interface extendsHandlerInterface
class.
- Create
Webapi.php
in the same directory. The file contains a handler class. In the following example WebAPI handler uses some cURL handler methods to prepare data.
- Create
di.xml
in theetc/webapi
directory of the Magento_Tax module.
<?xml version="1.0" ?>
<!--
/**
* Copyright 漏 2015 Magento. All rights reserved.
* See COPYING.txt for license details.
*/
-->
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
<preference for="Magento\Tax\Test\Handler\TaxRule\TaxRuleInterface"
type="\Magento\Tax\Test\Handler\TaxRule\Webapi" />
</config>
